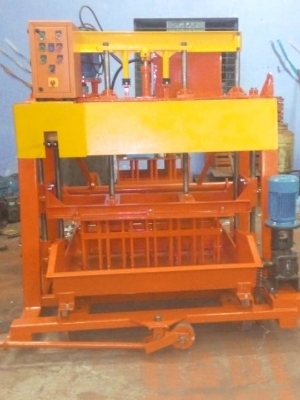

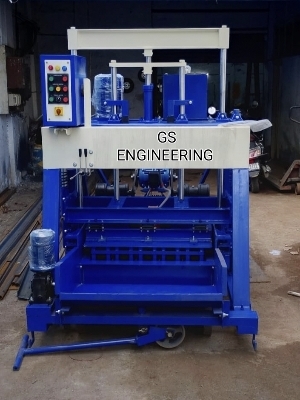

Hollow block making machine

Product Description

Heavy Duty Concrete Block Making Machine. This Is Heavy Duty Model An Egg Laying Type Hydraulic Operated Concrete Block Making Machine On Wheels, Which Will Lay Block On The Concrete Floor And Move To The Next Laying. Any Type Of Concrete Blocks Can Be Produced With Consistent Quality , High Strength And Pressure With Accurate Sizes By Fixing Different Types Of Concrete Mould And Ram In The Machine. Technical Specifications 105 M - 860 Model Triple Vibrator Total Power 7 H.P (3 Phase 415 V) Hydraulic Motor 3 H.P 1440 Rpm Mould Vibrator Motor 2 H.P 2880 Rpm Ram Vibrator Motor 1 H.P 2880 Rpm Travel Motor 1 H.P 1440 Rpm Machine Weight 1600 Kg (Approx ) Operating Pressure 140 KgcmA Quality Features Heavy : Channels, Plates, Rods , Hydraulic System , Gear Box, Rubber Fittings, Specialized Electric System , Branded Motors , Bolts , Nuts And All Fittings With Shutter Vibrator And Pressing System. Heavy Moulds Using 10 & 12 Mm Plates With Hard Crome Electro Plated, Square Pipes With Accurate Sizes. Dimensions 1750 X 1325 X 1800 Mm Production Capacity 50 a 60 Stroke Hour
